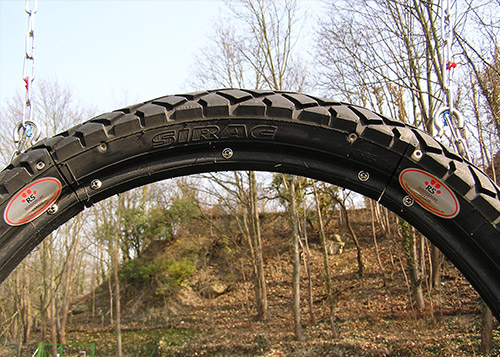

RS-Tire Lift 4T (recognized by the two RS-Logo Stickers on the two upper predetermined breaking point) Closed RS-Reifen 4T Opened RS-Reifen 4T

Functionality

The RS-Tire 4T (T=Teile (= parts) and the RS-Tire 3T Lift basically correspond to the characteristics of the RS-Tire 2T/3T and RS-Tire 2T/3T Lift and is hence a further development of those!

The Running-Safe Tire 4T is a tire obstacle, which focuses on the dog’s safety to minimize the risk of injury. Other considerations such as ease of use, weight of material, adaptability to existing frames and mounts, the stability and elasticity of the material and the ease of installation were included in the development of it.

The Running-Safe Tires 4T is designed that in addition to the lower part also the upper part of the tire could open in case of a collision. The upper part of the tire is likewise the lower part in the case of a collision designed to fall off to the ground. The two parts which are the left and right side of the tire stay connected tot he frame through the „Lift“ mechanism. The lower part of the tire still falls in the corresponding way as usually down to the floor. The upper part of the RS-Tire 4T is equipped with a much stronger magnet than the lower part of the tire. Thus, the tire opens completely when it is stressed accordingly. Through the use of magnets, the stressed parts of the tire can easily be put together and aligned after any collision.
The lower part of the tire can be separated from the upper part as before, so that the lower part will fall to the ground in case of any accident.

Construction

If a dog jumps diagonally in the tire at the right pressure this will also loosen the chains held by magnets. In order to minimize the risk of injury at this point, the chains are surrounded by a transparent tube.

Should the opening of the upper part deform by such a situation as described above, the tire can easily be pushed back into its original shape. This can easily be done without the use of tools and considerable effort due to the incorporated stabilizers.

Usage

The RS-Tires 2T/3T4T are generally built in the RS-Rack and can be built into many other frameworks and is therefore most suitable for retrofitting. The mandatory purchase of a complete frame with tire is therefore not necessary for most of the currently used frameworks. Just the height adjustment of the chains on both sides has to be fitted to the frame individually.
The chains to which the tire is mounted, are supposed to be used for a framework with the size of 1600mm width and 1500mm height and must be interpreted (when retrofitting) adjusted by the customer laterally if necessary.

Free Service

For solving technical issues, please contact us. We are happy to assist you.
